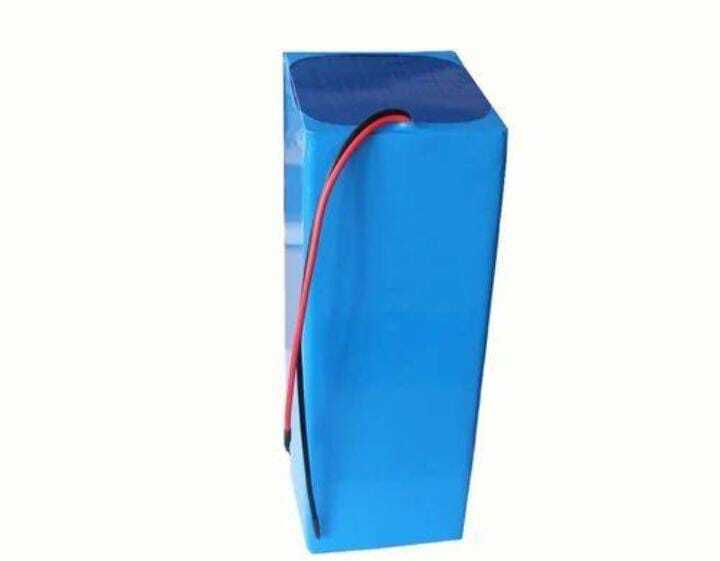

24volt 30ah (8S5P) lifpo4 Rechargable battery
24volt 30ah (8S5P) lifpo4 Rechargable battery Specification
- Features
- Good Quality
- Shelf Life
- 1 Years
- Size
- Standard
- Usage & Applications
- Commercial
- Batteries Type
- Rechargable battery
- Cover
- Yes
- Sealed Type
- Packed
- Material
- Lithium Ion
24volt 30ah (8S5P) lifpo4 Rechargable battery Trade Information
- Minimum Order Quantity
- 10 Packs
- Supply Ability
- 1000 Packs Per Month
- Delivery Time
- 7 Days
About 24volt 30ah (8S5P) lifpo4 Rechargable battery
24V 30Ah lithium-ion battery is a high-capacity, high-power battery pack commonly used for electric bikes, scooters, solar energy storage, UPS systems, and other heavy-duty or long-runtime applications.
Battery Overview
Specifications:
| Spec | Value |
|---|---|
| Voltage | 24V nominal (actually 25.9V; made from 7 lithium-ion cells in series, i.e., 7S) |
| Fully Charged | 29.4V (4.2V 7) |
| Discharged Limit | 19.6V (2.8V per cell 7) |
| Capacity | 30Ah (30,000mAh) |
| Energy | 777 Wh (24.0V 30Ah) nearly 0.8 kWh |
| Chemistry | Lithium-Ion (commonly made from 18650 or 21700 cells) |
| Configuration | 7SxP (number of parallel cells depends on the Ah per cell) |
Typical Applications:
-
E-bikes / E-scooters
-
Solar energy storage
-
Portable power stations
-
Robotics / AGVs /
-
Backup power (UPS)
Charging & Safety:
| Recommended Practices | Important Notes |
|---|---|
| Use a 24V Li-ion charger (29.4V output) | Never exceed 29.4V or drop below 19.6V |
| Look for a pack with a BMS (Battery Management System) | BMS protects from overcharge, over-discharge, overcurrent |
| Keep in a ventilated, fire-safe area | Never short, puncture, or crush the battery |
| Charge with CC/CV profile | Only use compatible chargers (no lead-acid chargers) |
Physical & Electrical Features:
| Feature | Details |
|---|---|
| Weight | 5 to 8 kg (depends on build) |
| Size | Varies usually box-shaped |
| Connector | XT60, Anderson, XT90, or custom |
| Discharge Rate | Important for motor power (look for continuous current rating in amps) |
